Ceiling Suspended DR X-ray System for Hospital Imaging
The Ceiling-mounted Digital Radiography System is designed to provide efficient and high-quality diagnostic imaging for modern hospitals and radiology departments. With its ceiling-suspended structure and dual Bucky configuration, the system allows flexible positioning and fast workflow during radiographic examinations.

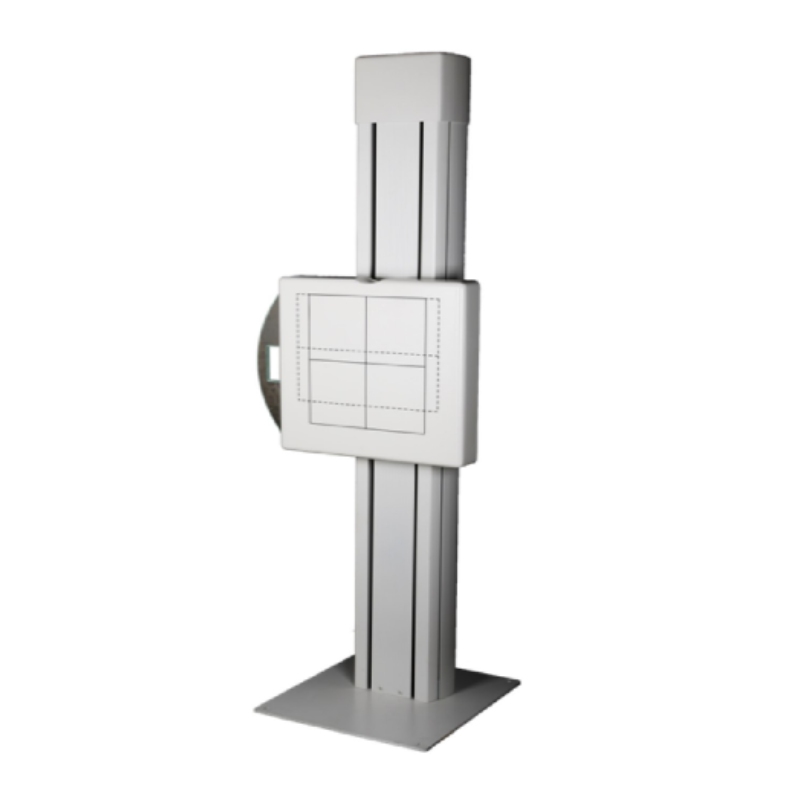

The ceiling suspension design maximizes workspace efficiency and allows smooth movement of the X-ray tube and detector, enabling easy positioning for different imaging procedures. The system supports both table radiography and vertical stand radiography, making it suitable for a wide range of clinical examinations.
Equipped with an auto-tracking function, the system automatically synchronizes the movement between the X-ray tube and the Bucky detector, ensuring precise alignment during imaging. The alignment error between the tube center and the detector center is controlled within ±2 mm, which improves imaging accuracy.
The system also features a preset reset positioning function, allowing operators to store commonly used imaging positions such as 1 m, 1.8 m, and under-table positions, significantly improving workflow efficiency.
With advanced digital image processing algorithms, the system provides high-resolution images with optimized contrast and noise reduction, ensuring accurate diagnosis for various medical examinations.
Key Features
- Ceiling-mounted digital radiography system
- Dual Bucky design for table and vertical imaging
- Auto-tracking system for tube and detector alignment
- High positioning accuracy (±2 mm)
- Preset positioning with one-button reset
- Large movement range for flexible patient positioning
- Intelligent image processing and enhancement algorithms
- High-resolution imaging with noise reduction
- Efficient workflow for radiology departments
System Components
The system typically includes:
- Ceiling-suspended tube stand

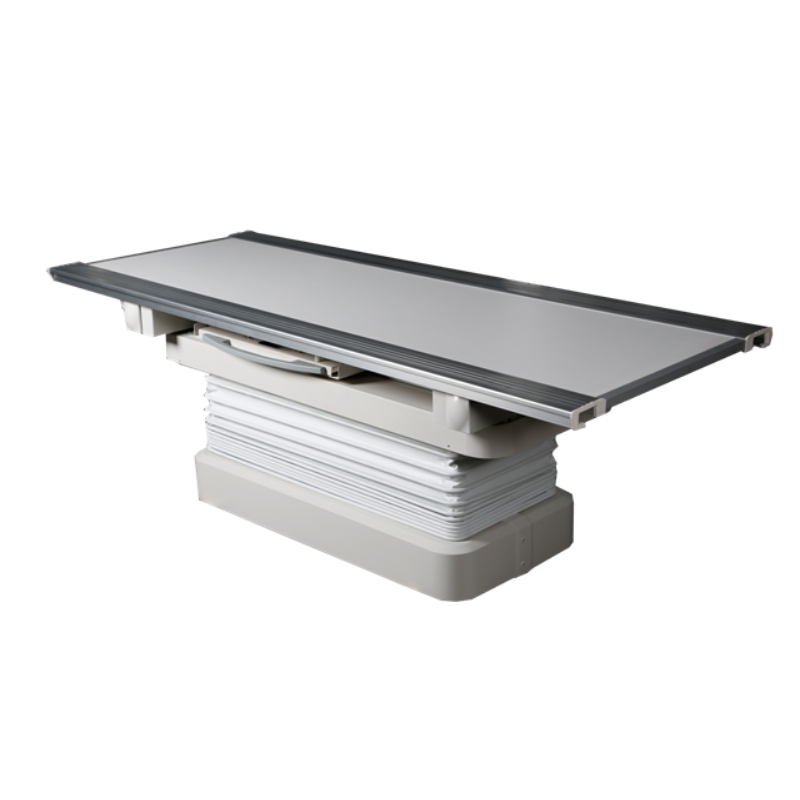

- Radiography table with Bucky
- Flat panel detector (FPD)
- Digital imaging workstation
This configuration supports both standing and supine patient imaging.
System Specifications
| |
|---|
| |
| |
| |
Longitudinal Table Movement | |
| |
| |
| |
Clinical Applications
The ceiling-mounted DR system is widely used for routine radiographic examinations including:
It is suitable for radiology departments in hospitals and diagnostic centers.
